Production Description:

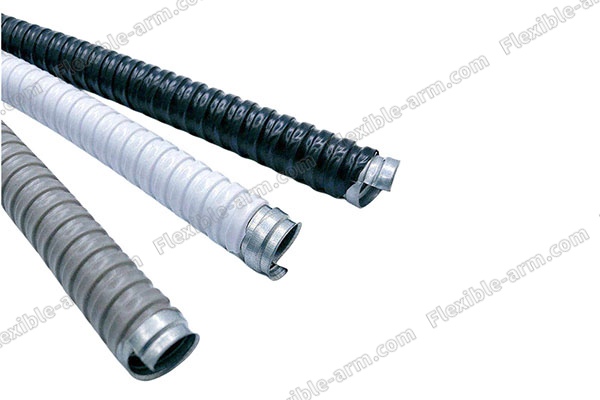

| Product Name | Stainless steel flexible electrical conduit |
| Material | Stainless Steel 304, 321, 316 and 316L, Galvanized Steel |
| DN | 3/8"-6"mm |
| Thickness | 0.18-1.2mm |
| Max. work pressure | 10Mpa |
| Working temperature | -270 to 700 degree |
| Connect type | Flange/Thread/Quick coupling |
Technical Data:
| Type | Trade Size | I.D. (mm) | O.D. (mm) | Meter/Coi | ||
| Min. | Max. | Min. | Max. | |||
| CH-LLC-001 | 3/16" | 5.7 | 6.1 | 8.8 | 9.3 | 100 |
| CH-LLC-002 | 1/4" | 8 | 8.6 | 11 | 11.5 | 100 |
| CH-LLC-003 | 5/16" | 10 | 10.2 | 12.6 | 13.4 | 100 |
| CH-LLC-004 | 3/8" | 13 | 13.3 | 15.6 | 16 | 50 |
| CH-LLC-005 | 1/2" | 16 | 16.8 | 19.5 | 20 | 50 |
| CH-LLC-006 | 3/4" | 20 | 21.2 | 24.1 | 24.7 | 50 |
| CH-LLC-007 | 1" | 25 | 26.8 | 30 | 30.6 | 50 |
| CH-LLC-008 | 1-1/4" | 32 | 34.6 | 38.5 | 39.4 | 30 |
| CH-LLC-009 | 1-1/2" | 38 | 40.6 | 43.8 | 44.5 | 25 |
| CH-LLC-010 | 2" | 51 | 51.2 | 55.5 | 56.2 | 20 |
| CH-LLC-011 | 2-1/2" | 62.9 | 63.6 | 69 | 71 | 10 |
| CH-LLC-012 | 3" | 77 | 78.3 | 85 | 87 | 10 |
| CH-LLC-013 | 4" | 100 | 101.3 | 108 | 110 | 5 |
FAQ:
Q: What material hose do you have?
A: stainless less steel (grade201, 3045, 316L, 321), galvanized steel, aluminum.
Q: What size hose and what type do you have?
A:We have both square lock and interlock hose
B: square lock hose: ID 3mm-102mm
C:interlock hose: ID3 till ID450
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and pvc coating material & thickness.
Q: why should I chose you?
A: we produce both hose and hose making machine with many years' experience and professional technology.
Q: what is your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send quotation for the conduit:
1.Conduit material
2.Conduit type, for instance, square lock or interlock
3.Size/diameter
4.Quantity
