Specify the complete mounted weight, horizontal reach, orientation and adjustment range. Include brackets, adapters and cables in the load. Agree sample checks for holding drift and adjustment effort at the most demanding working position.
Use the lamp arm guide for lamp-head weight and wiring, the camera mount guide for device interfaces and base requirements, or the microphone gooseneck guide for microphone mounting and cable routing. Browse the product catalog to distinguish components from application-specific assembly requirements.
Provide the required material grade, finish, exposure conditions and cleaning requirements. Specify overall and flexible-section lengths, outside diameter, usable bore, end threads and connector clearance. Request review of the proposed construction; a material name alone does not establish corrosion resistance, insulation or waterproof performance.
The dimensional table below is not a load-rating or bend-radius table. Confirm the selected dimensions and tolerances on the approved drawing. Define the required bend path, adjustment frequency and acceptance test rather than applying a universal minimum radius or load capacity.
List the inspection records, material documentation and application-specific tests required for the order. Confirm availability and scope during quotation review. Include end fittings, colors and branding requirements in the drawing or RFQ.
Send your gooseneck arm drawing for review with sample and production quantities, supply scope and acceptance criteria.
Buyer RFQ questions
These questions help OEM buyers, lamp brands, distributors and project teams prepare a clearer quotation request before samples or bulk orders.
Send the application, supported load, arm length, outside diameter, bend stiffness, end connector, thread size, finish, cable-routing needs, quantity and drawings or photos when available.
A heavier load or longer arm usually needs stronger holding force and a suitable diameter. The arm should be tested with the real lamp head, device, holder or fixture before bulk production.
Yes. Male threads, female threads, collars, plates, adapters and special fittings can be reviewed from drawings or reference samples before quotation.
Flexible gooseneck arms are used in lighting, microphones, cameras, inspection tools, medical equipment, sensor holders, displays, furniture accessories and industrial positioning fixtures.
Yes. Sample approval helps confirm holding force, adjustment feel, connector fit, surface finish, cable path, packaging and repeat-order consistency before mass production.

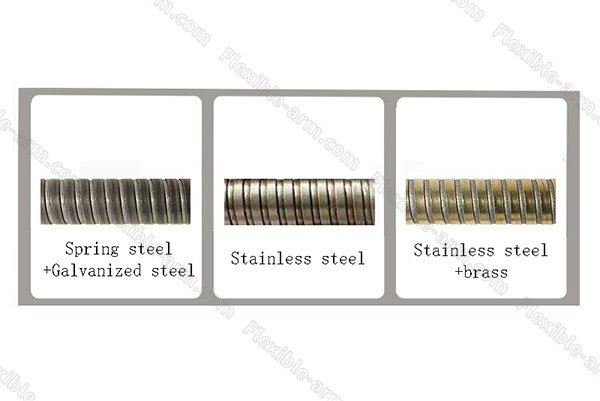

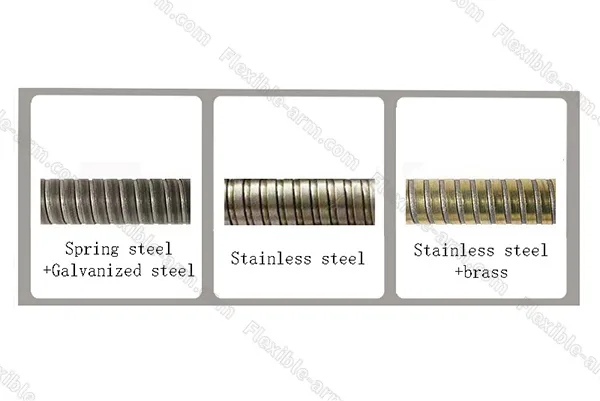

A flexible gooseneck arm is built from wound metal strip or wire structures that combine controlled flexibility with positional holding force. Common material options include stainless steel, carbon steel, galvanized steel, brass and coated assemblies. The arm can be specified by outside diameter, length, bending force, surface finish and end connector so it fits lamps, inspection lights, holders, microphones, displays and industrial fixtures.



- Basically, we need the following information before we can provide the best solutions:

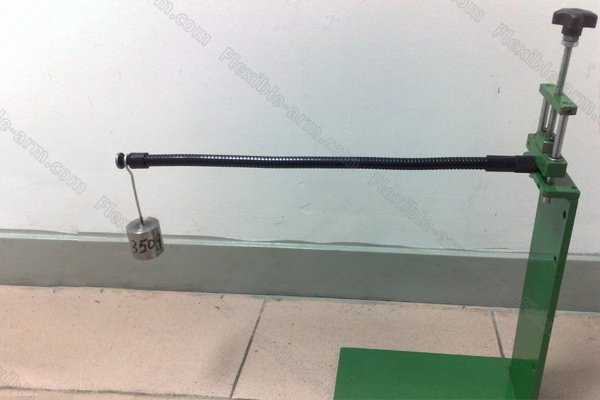

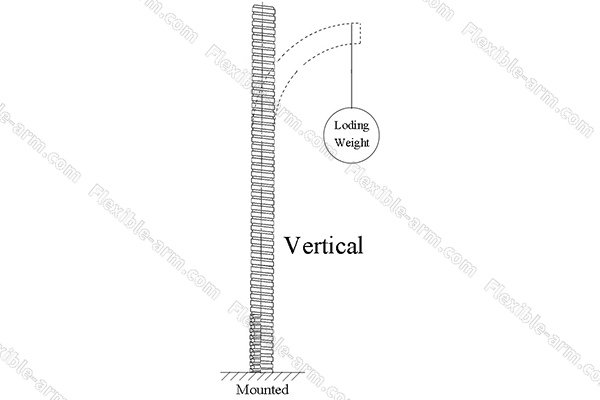

This critical factor determines the size of the flexible gooseneck and limits the length that can be used. There are 2 different ways of loading, horizontal positions or vertical when bent a certain degree, it depends on different applications.

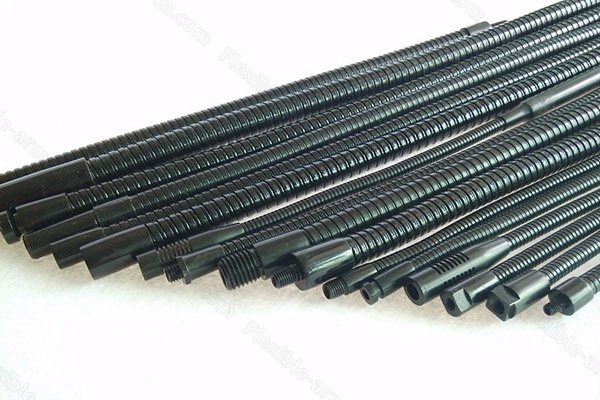

Dimension both end interfaces, including thread system, size, pitch, engagement length, shoulders and orientation. Identify the mating parts and whether male threads, female threads, collars or other fittings are required. Provide a drawing for non-standard shapes and confirm manufacturing feasibility before quotation. Check the sample with the actual mating parts, cable and mounting base.

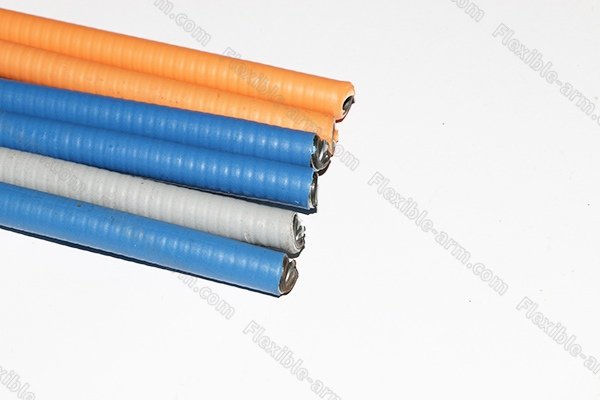

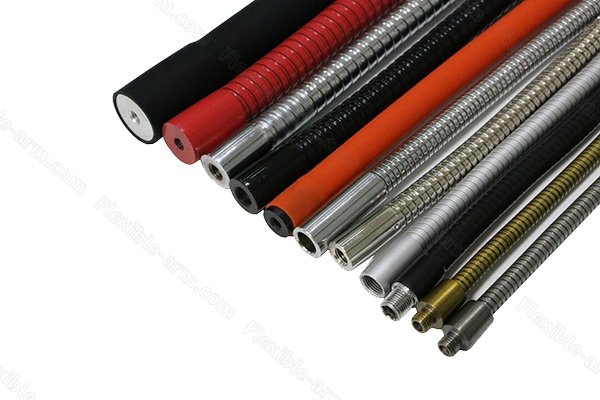

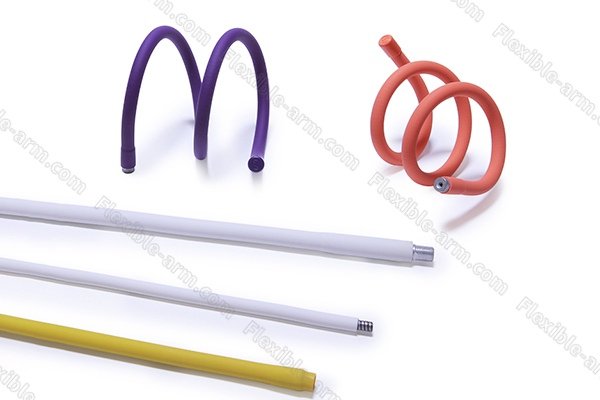

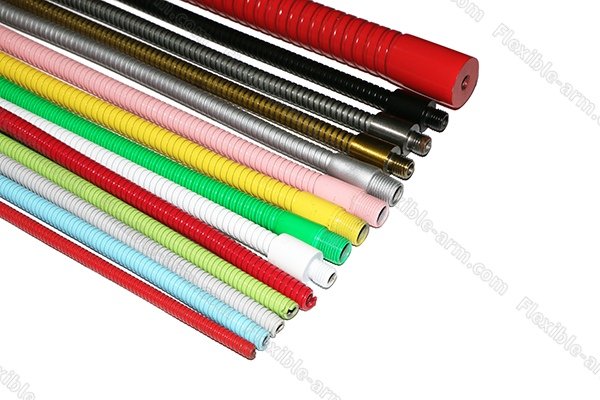

Using a wide range of surface treatment and finishing to achieve various looks and colors, which enables the Flexible Gooseneck Tube to match other connecting parts and keep them uniform. Another important purpose is to make them anti-corrosive during long-term use. Options: -Electroplating: Black, Chrome, Nickel, Zinc, Sandblast - Painting (in colors): Wet, powder, sprayed, baked -Plastic coated (in colors): PE heat shrink




| Type/Model | Outer Dianeter/OD ±0.2mm(inch) | Inner Diameter/OD ±0.2mm(inch) | MAX Length (with finishing) mm(inch) | Applications |
| CH-02 | 2(0.079) | 0.8(0.032) | 1200mm (47.24in) | Industrial, Medical, Electronics,Micro Devices to Heavy Machinery,Lighting, Robotics, Medical Tools, Microphones,antennas,etc |
| CH-03 | 3(0.118) | 1.3(0.051) | ||
| CH-04 | 4(0.157) | 1.8(0.071) | ||
| CH-05 | 5(0.197) | 2.5(0.098) | ||
| CH-06 | 6(0.236) | 2.8(0.110) | ||
| CH-07 | 7(0.276) | 3.5(0.138) | ||
| CH-08 | 8(0.315) | 4.0(0.157) | ||
| CH-09 | 9(0.354) | 4.5(0.177) | ||
| CH-10 | 10(0.394) | 5.5(0.217) | ||
| CH-11 | 11(0.433) | 6.0(0.236) | ||
| CH-12 | 12(0.472) | 6.5(0.256) | ||
| CH-13 | 13(0.512) | 7.0(0.276) | ||
| CH-14 | 14(0.551) | 7.5(0.295) | ||
| CH-15 | 15(0.591) | 8.0(0.315) | ||
| CH-16 | 16(0.630) | 8.5(0.335) | ||
| CH-17 | 17(0.670) | 9.0(0.354) | ||
| CH-18 | 18(0.709) | 9.5(0.374) | ||
| CH-19 | 19(0.748) | 10(0.394) | ||
| CH-20 | 20(0.757) | 10.5(0.413) | ||
| CH-21 | 21(0.827) | 11(0.433) | ||
| CH-22 | 22(0.866) | 11.5(0.453) | ||
| CH-23 | 23(0.906) | 12(0.472) | ||
| CH-24 | 24(0.945) | 12.5(0.492) | ||
| CH-25 | 25(0.984) | 13.5(0.531) | ||
| CH-26 | 26(1.024) | 14(0.551) | ||
| CH-27 | 27(1.063) | 15.8(0.622) | ||
| CH-28 | 28(1.102) | 16.5(0.650) | ||
| CH-29 | 29(1.142) | 17(0.670) | ||
| CH-30 | 30(1.181) | 17.5(0.689) | ||
| CH-31 | 31(1.220) | 18(0.709) | ||
| CH-32 | 32(1.260) | 18.5(0.728) | ||
| CH-33 | 33(1.299) | 19(0.748) | ||
| CH-34 | 34(1.338) | 19.5(0.768) | ||
| CH-35 | 35(1.378) | 20(0.787) | ||
| CH-36 | 36(1.417) | 20.5(0.807) | ||
| CH-37 | 37(1.456) | 21(0.827) | ||
| CH-38 | 38(1.496) | 21.5(0.846) | ||
| CH-39 | 39(1.535) | 22(0.866) | ||
| CH-40 | 40(1.575) | 22.5(0.886) |
