The Complete Guide to Flexible Metallic Conduit (FMC) for Modern Electrical Installations

Introduction

In the world of electrical wiring and cable protection, flexible metallic conduit (FMC) stands out as a versatile and durable solution. Also known as FMC electrical conduit or metal flex conduit, this wiring protection system is essential for applications requiring both flexibility and robust physical protection.

Whether you're an electrician, contractor, or industrial engineer, understanding the benefits, types, and proper use of armored flexible conduit can help you make informed decisions for your projects.


What Is Flexible Metallic Conduit (FMC)?

Flexible metallic conduit is a spiral-wound, corrugated tubing made from galvanized steel or aluminum. It provides mechanical protection for electrical wires while allowing easy bending and routing around obstacles.

Key Features of FMC:

✔ Highly flexible – Easily bends without tools
✔ Durable protection – Resists crushing, impact, and abrasion
✔ Corrosion-resistant – Galvanized or coated options available
✔ EMI shielding – Protects against electromagnetic interference


Types of Flexible Metallic Conduit

1. Standard FMC (Flexible Metallic Conduit)

  • Basic steel flexible conduit for general wiring
  • Used in dry indoor locations
  • Common in commercial and residential buildings

2. Liquid-Tight FMC (LFMC)

  • Liquid-tight metal conduit with a waterproof PVC jacket
  • Ideal for wet or outdoor environments
  • Resists moisture, oils, and chemicals

3. Armored Flexible Conduit

  • Heavy-duty armored flexible conduit with extra protection
  • Used in industrial and high-impact areas
  • Often paired with sealed fittings

4. EMT Flexible Conduit


Top Applications of Flexible Metallic Conduit

✔ Industrial Machinery & Equipment

  • Protects wiring in CNC machines, conveyors, and robotic arms
  • Industrial flexible conduit withstands vibration and movement

✔ Commercial & Residential Wiring

  • Used for:
    • HVAC systems
    • Lighting fixtures
    • Appliance connections

✔ Hazardous & Outdoor Locations

  • Corrosion-resistant metal conduit for chemical plants
  • Liquid-tight metal conduit for marine and wet environments

✔ Data Centers & Telecom

  • Shields sensitive cables from EMI interference
  • Flexible routing for server racks and networking gear

Advantages of Using FMC Over Other Conduit Types

FeatureFMCPVC ConduitRigid Metal Conduit
Flexibility✅ High❌ Rigid❌ Rigid
Crush Resistance✅ Excellent❌ Poor✅ Excellent
Moisture Resistance✅ (LFMC)✅ Good✅ Good
EMI Shielding✅ Yes❌ No✅ Yes
Installation Speed✅ Fast✅ Fast❌ Slow

Why Choose FMC?

  • Faster installation than rigid conduit
  • Better protection than PVC in high-impact areas
  • More versatile than EMT for tight spaces

How to Select the Right FMC for Your Project

1. Consider the Environment

  • Dry locations: Standard FMC electrical conduit
  • Wet/outdoor: Liquid-tight metal conduit
  • Corrosive areas: Corrosion-resistant metal conduit

2. Determine Size & Length

  • Common sizes: ½", ¾", 1" diameters
  • Ensure proper fill capacity (NEC guidelines)

3. Choose the Right Fittings

  • Use UL-listed connectors for safety
  • Compression fittings for liquid-tight applications

4. Verify Compliance

  • Check for NEC, UL, and CSA certifications

Installation Best Practices for FMC

🔧 Bending Guidelines:

  • Avoid sharp bends (maintain minimum bend radius)
  • Use a conduit bender for smooth curves

🔧 Securing the Conduit:

  • Use straps every 3-4 feet
  • Support within 12" of junction boxes

🔧 Grounding Requirements:

  • Properly bond metal flex conduit for safety
  • Use grounding bushings where needed

🔧 Avoid Common Mistakes:

  • Overfilling the conduit
  • Exposing standard FMC to moisture
  • Using damaged conduit sections

FMC vs. Alternative Conduit Systems

FMC vs. EMT (Electrical Metallic Tubing)

  • FMC is more flexible but offers less crush resistance
  • EMT is rigid but requires more fittings

FMC vs. Liquid-Tight Non-Metallic Conduit

  • FMC provides EMI shielding
  • Non-metallic is lighter but less durable

FMC vs. Armored Cable (AC)

  • FMC allows for easier wire changes
  • AC has integrated wires but is less flexible

Future Trends in Flexible Metallic Conduit

  • Smart Conduit Systems: Embedded sensors for wire health monitoring
  • Enhanced Coatings: Longer-lasting corrosion-resistant metal conduit
  • Sustainable Materials: Recyclable steel and low-impact manufacturing

Conclusion

Flexible metallic conduit (FMC) is an indispensable solution for modern electrical installations, offering the perfect balance of flexibility, durability, and protection. From industrial flexible conduit applications to commercial wiring, FMC ensures safe and efficient cable management.

Key Takeaways:

✅ Choose FMC electrical conduit for flexible, durable wiring protection
✅ Use liquid-tight metal conduit in wet or harsh environments
✅ Follow NEC guidelines for proper installation

Whether you're protecting sensitive data cables or rugged industrial wiring, metal flex conduit provides reliable performance.

Need help selecting the right conduit? Contact our experts for personalized recommendations!

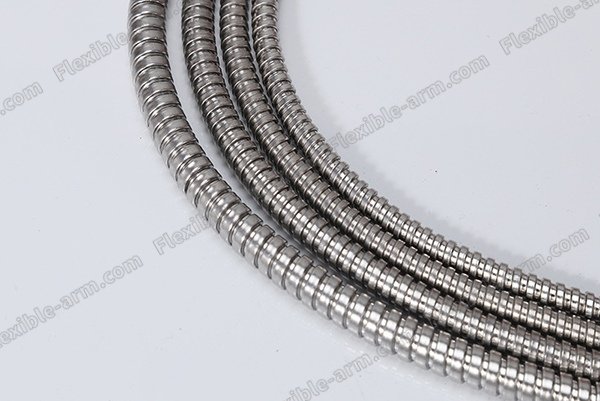

stainless steel square locked flex conduit 4
