Properties:

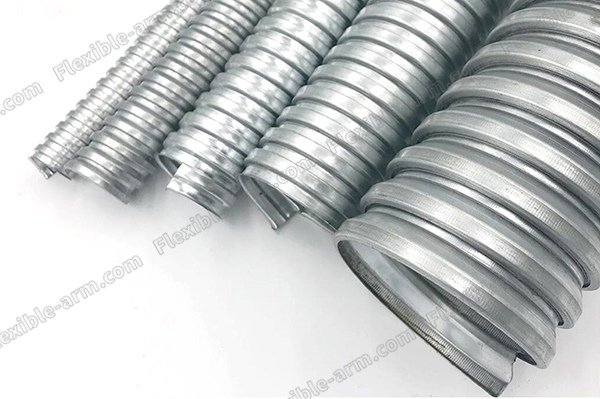

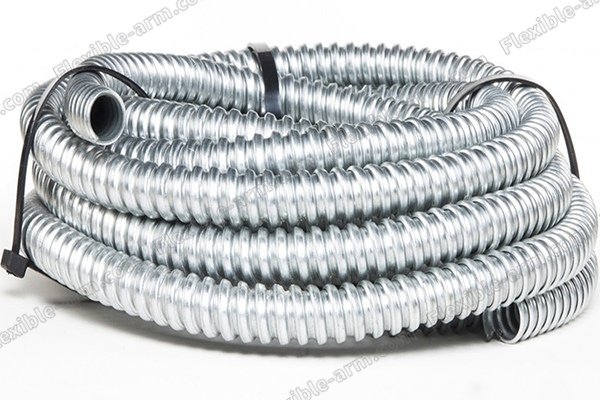

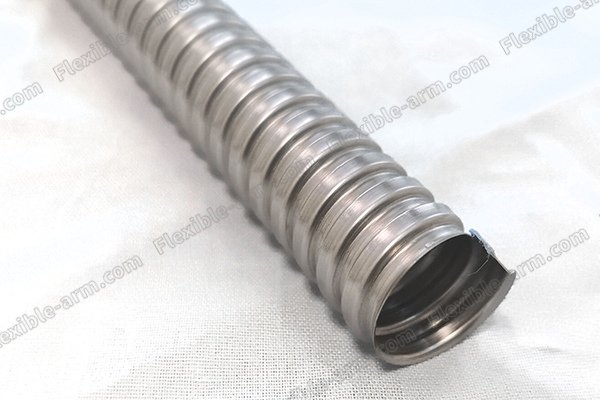

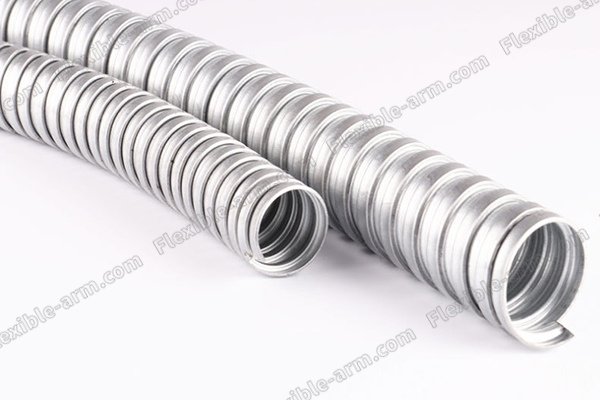

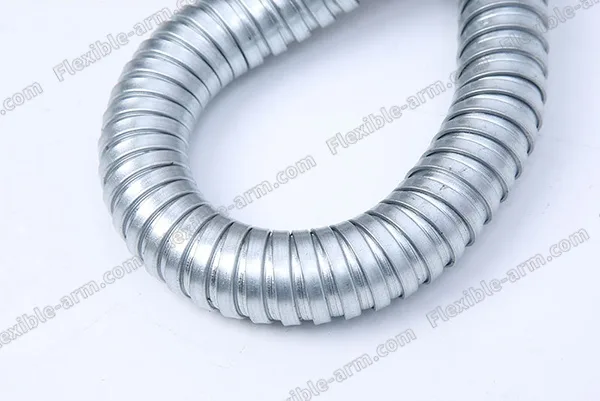

- Flexible steel conduit has many universal wiring applications. This conduit can withstand substantial impact and crushing forces.

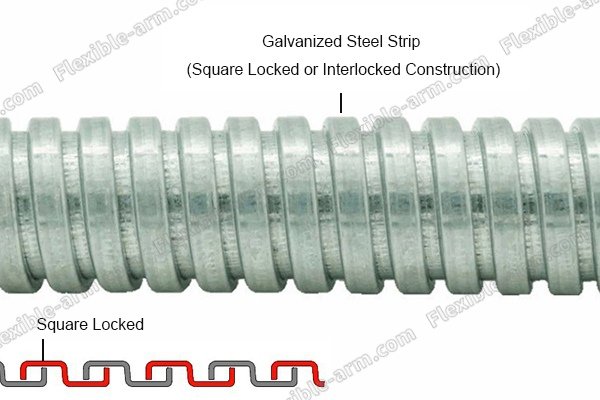

- Flexible metal conduit with square locked or interlocked construction of galvanized steel strip.
- Good mechanical protection of wirings *All metallic constructions, inherent low fire hazard.
Applications:
Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.
| Type | Trade Size | I.D. (mm) | O.D. (mm) | Meter/Coi | ||
| Min. | Max. | Min. | Max. | |||
| CH-GSC-001 | 1/4" | 9.2 | 9.7 | 13.5 | 14 | 100 |
| CH-GSC-002 | 3/8" | 12.3 | 12.5 | 15.3 | 16.3 | 50 |
| CH-GSC-003 | 1/2" | 15.8 | 16.1 | 18.7 | 20.3 | 50 |
| CH-GSC-004 | 3/4" | 20.8 | 21.3 | 23.7 | 25.3 | 50 |
| CH-GSC-005 | 1" | 25.4 | 26.5 | 29.2 | 31.3 | 50 |
| CH-GSC-006 | 1-1/4" | 34 | 35.8 | 37.7 | 40.3 | 30 |
| CH-GSC-007 | 1-1/2" | 39 | 40.6 | 43.4 | 45.3 | 30 |
| CH-GSC-008 | 2" | 51 | 51.5 | 54.8 | 56.3 | 20 |
| CH-GSC-009 | 2-1/2" | 62.5 | 63.2 | 66.5 | 67.5 | 10 |
| CH-GSC-010 | 3" | 77.9 | 78.3 | 81.6 | 83.3 | 10 |
| CH-GSC-011 | 4" | 101.6 | 102.6 | 105.5 | 107.3 | 5 |
