How to Specify Black Finish Gooseneck Tubes

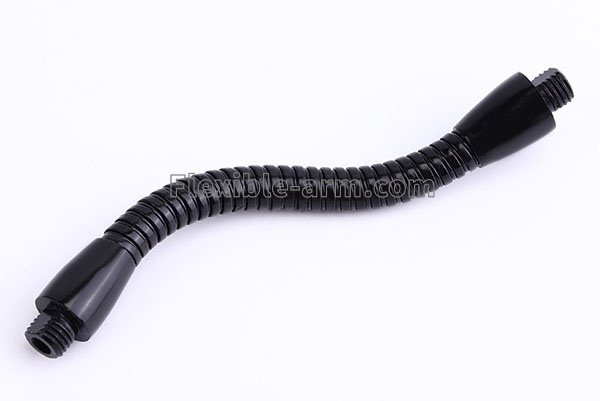

Black plated flexible gooseneck hose with threaded end fittings

A black finish gooseneck enquiry needs both a mechanical specification and an appearance specification. Start with the assembly the tube must support, then confirm the finish process and sample acceptance criteria. The product name “black plating gooseneck hose” is not a pressure rating or a material specification.

Describe the positioning task

List the supported component, its weight, cable weight, maximum reach and mounting orientation. Show the normal working shape and any space limits. A short upright arm and a longer horizontal arm can behave differently even when their outside diameters match. Test a sample with the actual component and cable rather than accepting an unloaded bend demonstration.

Turn “black” into an appearance requirement

A color word does not define the substrate, surface process, gloss or durability. Send an approved physical sample or a clear finish reference, identify visible surfaces and discuss the proposed process with the supplier. Confirm whether the finish is applied before or after the fittings are assembled, and review any visible transition at the joints.

Agree how appearance will be inspected: lighting, viewing distance, acceptable surface marks and color or gloss variation. If a measurement method is required, state the method and acceptance limits in the purchase specification. Do not assume that different black finishes will match without a sample comparison.

Review handling, wear and environmental conditions

Explain where the finished product will be used and what will contact the surface. Consider repeated hand adjustment, rubbing against adjacent parts, cleaning agents, humidity and packaging contact. Request evidence against the particular test conditions needed for the application. A black finish alone does not substantiate corrosion resistance, chemical resistance or outdoor suitability.

Match tube dimensions and end fittings

Provide total length, flexible length, outside diameter and usable inside diameter. Include thread drawings with pitch, gender, engagement and shoulder dimensions. For cable-through designs, check the narrowest completed fitting as well as the tube passage. State whether cables or connectors must be installed before the end fittings are assembled.

Agree a sample acceptance record

Record the drawing revision, sample identification, supported load, working orientation and the agreed holding check. Include adjustment feel, fitting fit, visible finish and packaging protection. Use the accepted sample as a reference for later production checks, alongside the documented tolerances and test methods.

For the component enquiry, see black finish positioning gooseneck tubes. If a bright metallic appearance is being considered, compare the requirements in the chrome finish specification guide.

Download the gooseneck RFQ template, mark undecided specifications for review, then send the drawing and project requirements.
