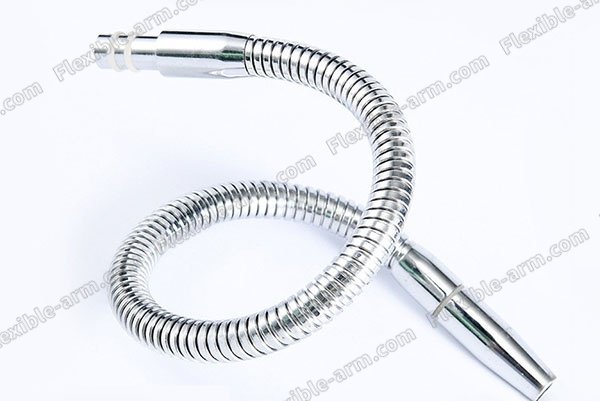

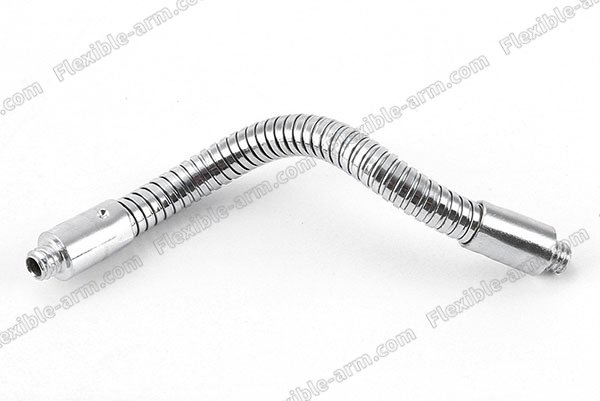

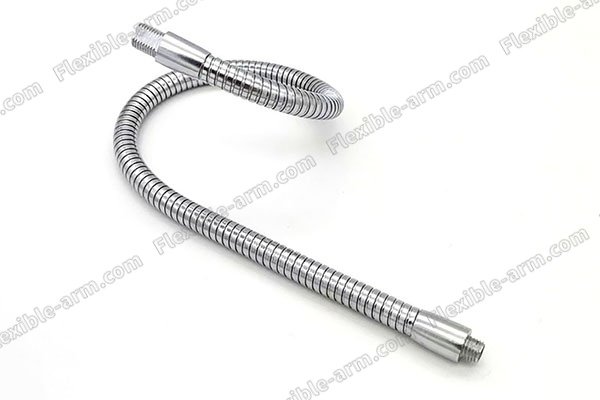

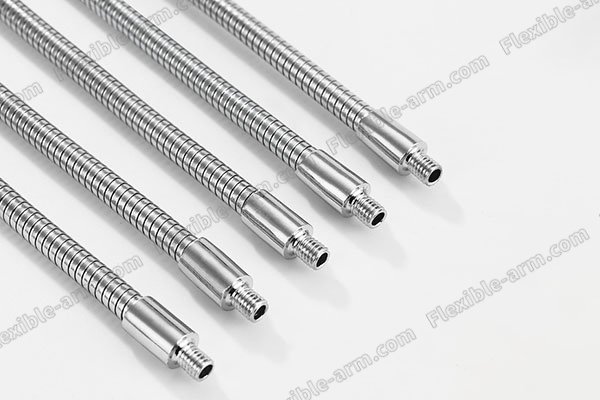

A chrome finish gooseneck tube combines a visible metallic surface with an adjustable positioning component. Review the underlying tube material, finish process and complete assembly separately. The finish does not by itself establish stainless steel construction, water pressure capability or compatibility with a faucet connection.
Provide total length, flexible length, outside diameter and required cable passage. Include the supported part and cable weight, mounting direction and longest horizontal reach. Test adjustment feel and holding behavior in that configuration; appearance is not a measure of load capacity.
Use an approved sample to communicate gloss, color tone and visible surface requirements. Mark cosmetic surfaces, concealed areas and acceptable handling marks on the drawing. Ask for the proposed substrate and finishing process to be confirmed before sample production. Environmental and corrosion requirements need their own agreed test conditions.
Send dimensioned drawings for thread size and pitch, thread gender, engagement length, shoulders and mounting faces. Confirm whether fittings are included and how the joint is retained. If a cable runs through the arm, check the usable bore of both end fittings and allow for installation clearance.
State whether you need a tube, a tube with end fittings or a finished mounting assembly. Include sample quantity, order quantity, drawing revision and packaging requirements. Confirm finish appearance, connection fit and holding performance on the same sample assembly before agreeing production acceptance criteria.
Read the chrome finish gooseneck specification guide for the appearance and fitting review. Use the gooseneck RFQ resources to organize the enquiry.
