Overbraided Flexible Conduit: Ultimate Protection for Demanding Environments

In industrial, marine, and high-performance applications, standard cable protection often falls short. Overbraided flexible conduit provides superior defense against abrasion, extreme temperatures, and mechanical stress, making it the preferred choice for engineers and maintenance professionals. This guide explores its features, benefits, and applications to help you select the right solution for your needs.

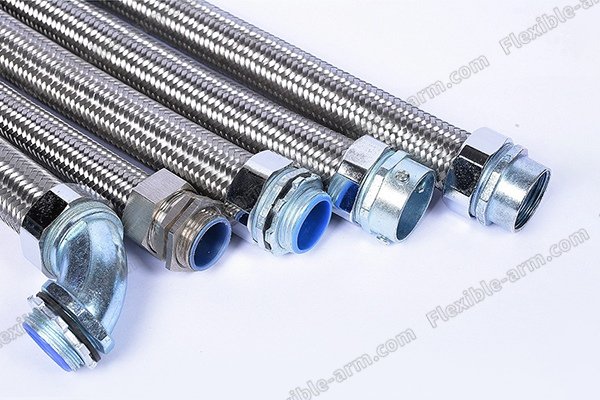

What Is Overbraided Flexible Conduit?

Overbraided flexible conduit consists of an inner core (typically thermoplastic or metal) wrapped in a high-strength outer braid, usually made of stainless steel or other durable alloys. This design combines flexibility with extreme durability, offering:

✔ Superior abrasion resistance
✔ Enhanced crush and impact protection
✔ Flexibility for tight installations
✔ Resistance to chemicals, oils, and extreme temperatures

Unlike standard conduits, this stainless steel braided conduit maintains performance in the harshest conditions, from factory floors to offshore rigs.

Key Benefits of Overbraided Conduit

1. Unmatched Durability

The metal overbraided hose structure provides:

• Crush resistance up to 5x higher than standard conduits
• Abrasion protection for cables in high-wear environments
• Tear resistance against sharp edges and tools

2. High-Pressure & Temperature Resistance

• High-pressure flexible conduit withstands hydraulic and pneumatic systems
• Extreme temperature conduit variants handle ranges from -65°F to +900°F

3. Corrosion & Chemical Resistance

• Corrosion-resistant braided conduit ideal for marine and chemical plants
• Resists acids, alkalis, solvents, and saltwater exposure

4. EMI/RFI Shielding (Optional)

• Some models include conductive braiding to block electromagnetic interference

5. Flexible Yet Strong

• Unlike rigid conduits, flexible metallic conduit bends easily around obstacles
• Maintains shape under vibration and movement

Types of Overbraided Flexible Conduit

Top Applications of Overbraided Conduit

1. Industrial Machinery

• Protects wiring in CNC machines, robotic arms, and heavy equipment
• Industrial flexible conduit prevents downtime from cable damage

2. Oil & Gas Industry

• Withstands high-pressure hydraulic lines
• Corrosion-resistant braided conduit for offshore platforms

3. Aerospace & Defense

• Used in avionics, missile systems, and UAVs
• Extreme temperature conduit handles rapid thermal changes

4. Marine & Shipbuilding

• Stainless steel braided conduit resists saltwater corrosion
• Protects navigation and communication systems

5. Automotive & Racing

• Shields wiring in high-vibration environments
• Heavy-duty wire protection tubing for electric vehicles

6. Power Generation

• Protects cables in turbines and substations
• Armored cable protection against mechanical stress

How to Choose the Right Overbraided Conduit

1. Material Selection

• Stainless steel braid for maximum durability
• Thermoplastic braid for chemical resistance
• Copper/nickel braid for EMI shielding

2. Size & Flexibility Needs

• Match inner diameter to cable bundle size
• Check bend radius for tight installations

3. Environmental Factors

• High temperatures? Choose extreme temperature conduit
• Chemical exposure? Opt for corrosion-resistant braided conduit
• Outdoor use? UV-resistant coatings available

4. Certifications & Compliance

• Look for UL, CSA, MIL-SPEC, or ATEX ratings

Installation & Maintenance Tips

🔧 Use Proper Fittings – Ensure liquid-tight seals for outdoor/wet environments
🔧 Avoid Overbending – Follow manufacturer’s bend radius guidelines
🔧 Secure with Clamps – Prevent abrasion at contact points
🔧 Inspect Regularly – Check for fraying or corrosion

Why Overbraided Conduit Outperforms Alternatives

Future Innovations in Braided Conduit Tech

✔ Smart Conduits – Embedded sensors for damage detection
✔ Self-Healing Coatings – Automatic repair of minor abrasions
✔ Sustainable Materials – Recyclable metal alloys & bio-based polymers

Final Thoughts

For engineers who demand heavy-duty wire protection tubing, overbraided flexible conduit delivers unmatched performance in extreme conditions. Whether you need armored cable protection for industrial robots or high-pressure flexible conduit for hydraulic systems, this solution ensures long-term reliability.

Upgrade your cable management today with stainless steel braided conduit and eliminate wiring failures in critical applications.
